Air Locker for Chrysler Jeep

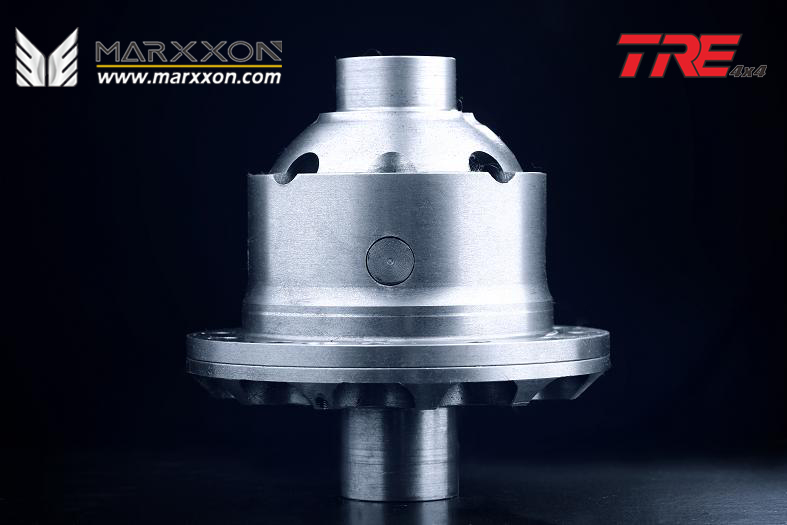

PRODUCT : Air Locker- Air Operated Locking Differential for Chrysler Jeep
DETAILS :
TRE air locker differential developed by MARXXON mainly for hard off road driving condition, for off road competition. The TRE Air Locker System is a pneumatic locking differential that uses a dash mounted electric switch to activate a vacuum diaphragm which engages the locker. The TRE Air Locker uses a small charge of air from an on board air compressor that in turn activates the locker. When activated, both axle shafts are locked together into the equivalent of a spool providing 100% equal traction to both wheels of that axle with no differential of speed between the wheels of that axle.
Welcome Distributor and Dealer contact us for details.
MARXXON-TRE Air Locker Features
-
Provides 100% traction on demand without affecting on road drivability or driveline wear
-
Vastly improved traction means less reliance on momentum, which reduces vehicle likelihood damage & environmental impact
-
Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort & safety of the driver’s seat
-
Ultra durable and extremely strong - only the highest quality materials used in construction
-
Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability
-
Thoroughly tested and proven design – trusted and used in over 80 countries around the world
-
Front and rear Air Lockers available for most makes and models 4WD & 2WD applications
-
Easy installation and maintenance – no special tools, skills or additives required
|
Vehicle/Model |
Axle Loc'n |
Year |
Description |
Shaft |
Shaft |
Ratio |
TRE |
|
|
|
|
|
Diameter |
Spline |
|
Part No. |
|
CJ(5, 6, 7 & 8), |
Front |
1971 on |
Dana 30 |
29.5 (1.16") |
27 |
3.73 & UP |
RD100 |
|
YJ & TJ Wrangler, |
|
|
|
|
|
3.54 & DN |
RD101 |
|
XJ Cherokee, |
|
2003 on |
TJ Wrangler Rubicon w/ OEM 4.10:1 gears |
33.3 (1.31") |
30 |
4.10:1 |
RD117 |
|
XJ Wagoneer, |
Rear |
2003 on |
TJ Wrangler Rubicon w/ OEM 4.10:1 gears |
33.3 (1.31") |
30 |
4.10:1 |
RD117 |
|
ZJ, WJ Grand Cherokee3 |
|
1993-2004 |
Dana 44A, ZJ C-clip; WJ non C-clip |
33.3 (1.31") |
30 |
All |
NA |
|
|
|
1990 on |
Dana 351, C-clip, XJ, YJ, ZJ, TJ, WJ |
29.5 (1.16") |
27 |
2.73-3.31 |
RD103 |
|
|
|
|
|
|
|
3.54 & UP |
RD102 |
|
|
|
1997-00 |
Chrysler 8.25" dia. RG, C-clip |
30.7 (1.21") |
29 |
All |
RD93 |
|
|
|
to 1996 |
Chrysler 8.25" dia. RG, C-clip |
29.5 (1.16") |
27 |
All |
N/A |
|
|
|
1997 on |
Dana 44, TJ model only |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
Dana 351, non C-clip |
|
|
3.73 & DN |
RD117 |
|
|
|
1985-89 |
29.5 (1.16") |
27 |
2.73-3.31 |
|
|
|
|
|
|
|
|
|
3.54 & UP |
RD102 |
|
|
|
1987-89 |
Dana 44, Commanche truck |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
|
1986-91 |
Dana 44, XJ w/ metric ton package |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
|
1976-85 |
AMC Model 20, 8.875" dia. RG |
31.8 (1.25") |
29 |
3.08 & UP |
NA |
|
|
|
|
|
|
|
2.73 & DN |
NA |
|
|
|
1969-75,86 |
Dana 44-3R |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
|
1966-68 |
Dana 44-R |
31.8 (1.25") |
19 |
3.92 & UP |
NA |
|
|
|
|
|
|
|
3.73 & DN |
NA |
|
JK Wrangler |
Front |
2007 on |
Dana 30 |
29.5 (1.16") |
27 |
3.73 & UP |
RD100 |
|
(not Rubicon models) |
|
|
|
|
|
3.54 & DN |
RD101 |
|
|
Rear |
2007 |
Dana 35 |
TBD |
TBD |
All |
TBD |
|
|
|
2007 on |
Dana 44 |
33.3 (1.31") |
30 |
All |
RD117 |
|
JK Wrangler Rubicon |
Front |
2007 on |
replacement for 32 SPL Rock-Trac e-locker |
|
All |
All |
NA |
|
|
Rear |
|
(axle upgrade required - see note 7) |
|
All |
All |
NA |
|
KJ,KK, Jeep Liberty, |
Front |
2001 on |
Dana 30 IFS |
29.5 (1.16") |
27 |
3.73 & UP |
RD100 |
|
Cherokee |
|
|
|
|
|
3.54 & DN |
RD101 |
|
|
Rear |
2001 on |
Chrysler 8.25" dia. RG, C-clip |
30.7 (1.21") |
29 |
All |
RD93 |
|
Full size AMC Cherokee, |
Front |
1974-93 |
Dana M44-1F |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
Grand Wagoneer |
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
|
1971-73 |
Dana 30 |
29.5 (1.16") |
27 |
3.73 & UP |
RD100 |
|
|
|
|
|
|
|
3.54 & DN |
RD101 |
|
|
Rear |
1986-93 |
Dana 44 |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
|
1980-86 |
AMC Model 20, 8.875" dia. RG |
31.8 (1.25") |
29 |
3.08 & UP |
NA |
|
|
|
|
|
|
|
2.73 & DN |
NA |
|
|
|
1969-79 |
Dana M44-3R |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
|
1966-69 |
Dana M44-R |
31.8 (1.25") |
19 |
3.92 & UP |
NA |
|
|
|
|
|
|
|
3.73 & DN |
NA |
|
J10, Light Truck, |
Front |
1971-88 |
Dana M44-1F |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
FC150, 170, |
|
|
|
|
|
3.73 & DN |
RD117 |
|
Honcho |
Rear |
1980-88 |
AMC Model 20, 8.875" dia. RG |
31.8 (1.25") |
29 |
3.08 & UP |
NA |
|
|
|
|
|
|
|
2.73 & DN |
NA |
|
|
|
1970-88 |
Dana M44-R |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
|
1966-69 |
Dana M44-R |
31.8 (1.25") |
19 |
3.92 & UP |
NA |
|
|
|
|
|
|
|
3.73 & DN |
NA |
|
J20, Medium Truck, |
Front |
1970-88 |
Dana M44-1F |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
J30, Heavy Truck |
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
Rear |
1974-88 |
Dana M60-3R |
33.3 (1.31") |
30 |
4.56 & UP |
RD162 |
|
|
|
|
|
|
|
4.10 & DN |
RD163 |
|
|
|
1969-73 |
Dana M60-2R |
38.1 (1.50") |
35 |
4.56 & UP |
RD166 |
|
|
|
|
|
|
|
4.10 & DN |
RD167 |
|
WK/WH Grand Cherokee, |
Front |
2005-10 |
TBD |
|
|
|
|
|
XK/XH Commander |
Rear |
2005-10 |
Chrysler 8.25" dia. RG, non-C-clip |
30.7 (1.21") |
29 |
ALL |
RD93 |
|
|
|
2005-10 |
Dana 44A (WK/WH: SRT8 only; XK/XH: 2WD only) |
33.3 (1.31") |
30 |
ALL |
NA |
|
WK2/WH2 Grand Cherokee |
Front |
2011 on |
TBD |
|
|
|
NA |
|
|
Rear |
2011 on |
TBD |
|
|
|
NA |
