DIFFERENTIAL

Air Locker for SUZUKI

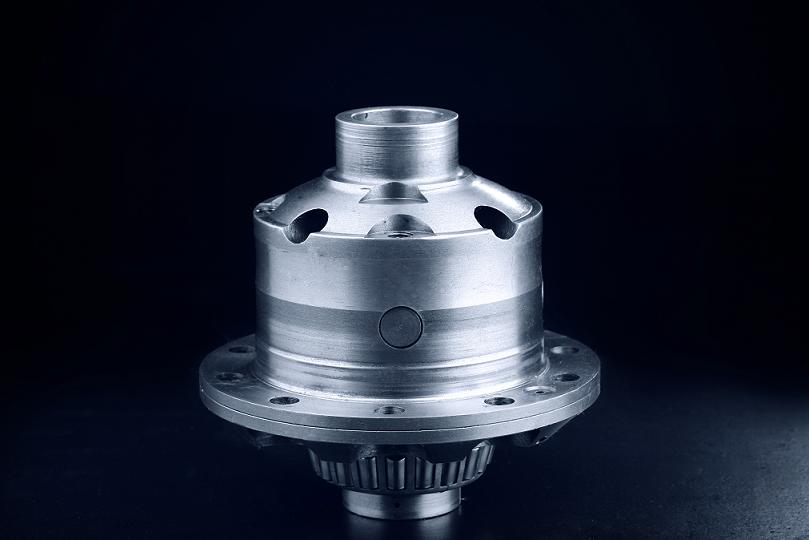

PRODUCT : Air Locker- Air Operated Locking Differential for Chrysler Jeep


DETAILS :

TRE air locker differential developed by MARXXON mainly for hard off road driving condition, for off road competition. The TRE Air Locker System is a pneumatic locking differential that uses a dash mounted electric switch to activate a vacuum diaphragm which engages the locker. The TRE Air Locker uses a small charge of air from an on board air compressor that in turn activates the locker. When activated, both axle shafts are locked together into the equivalent of a spool providing 100% equal traction to both wheels of that axle with no differential of speed between the wheels of that axle.

Welcome Distributor and Dealer contact us for details.


MARXXON-TRE Air Locker Features

  • Provides 100% traction on demand without affecting on road drivability or driveline wear

  • Vastly improved traction means less reliance on momentum, which reduces vehicle likelihood damage & environmental impact

  • Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort & safety of the driver’s seat

  • Ultra durable and extremely strong - only the highest quality materials used in construction

  • Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability

  • Thoroughly tested and proven design – trusted and used in over 80 countries around the world

  • Front and rear Air Lockers available for most makes and models 4WD & 2WD applications

  • Easy installation and maintenance – no special tools, skills or additives required



SUZUKI















Vehicle/Model

Axle Loc'n

Year

Description

Shaft

Shaft

Ratio

TRE









Diameter

Spline



Part No.

Sierra / Samurai / Jimny

Front

2003 on

Jimny model with 10 bolt RG

23.9 (0.94")

22

All

RD206

Holden Drover



1998-03

Jimny model with 8 bolt RG

23.9 (0.94")

22

All

RD2074

Maranti Gypsy



1984-98

Leaf spring suspension

23.9 (0.94")

22

All

RD205



Rear

1984 on

1.3 litre models only

27.4 (1.08")

26

All

RD208

Jimny (Japan only)

Front

1990-95

JA11, 660cc turbocharged engines ONLY

23.9 (0.94")

22

All

RD2074

(JA11, JA12)

Rear

1990-98

JA11 & JA12, 660cc turbocharged engines

27.4 (1.08")

26

All

RD208

Vitara / Sidekick

Front

1988-98

26 spline

27.4 (1.08")

26

All

RD208

Grand Vitara, XL7





22 spline

23.9 (0.94")

22

All

RD205





1998-05

26 spline ADD

27.4 (1.08")

26

All

NA2





2005 on







All

NA



Rear

1988-93

Suzuki 10 bolt RG

27.4 (1.08")

26

All

RD2041





1993-00

Suzuki 12 bolt RG (excl. Grand Vitara)

27.4 (1.08")

26

All

RD2091





1998-05

26 spline

27.4 (1.08")

26

All

NA3





2005 on

28 spline IRS

28.8 (1.13")

28

All

NA
