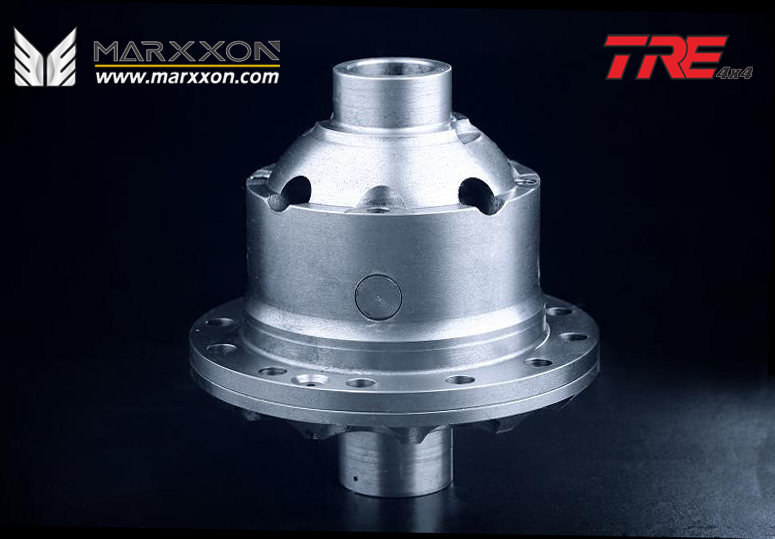

PRODUCT : Air Locker- Air Operated Locking Differential for Toyota, Lexus
DETAILS :
TRE air locker differential developed by MARXXON mainly for hard off road driving condition, for off road competition. The TRE Air Locker System is a pneumatic locking differential that uses a dash mounted electric switch to activate a vacuum diaphragm which engages the locker. The TRE Air Locker uses a small charge of air from an on board air compressor that in turn activates the locker. When activated, both axle shafts are locked together into the equivalent of a spool providing 100% equal traction to both wheels of that axle with no differential of speed between the wheels of that axle.
Welcome Distributor and Dealer contact us for details.
MARXXON-TRE Air Locker Features
Provides 100% traction on demand without affecting on road drivability or driveline wear
Vastly improved traction means less reliance on momentum, which reduces vehicle likelihood damage & environmental impact
Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort & safety of the driver’s seat
Ultra durable and extremely strong - only the highest quality materials used in construction
Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability
Thoroughly tested and proven design – trusted and used in over 80 countries around the world
Front and rear Air Lockers available for most makes and models 4WD & 2WD applications
Easy installation and maintenance – no special tools, skills or additives required
TOYOTA / LEXUS
Vehicle/Model |
Axle Loc'n |
Year |
Description |
Shaft |
Shaft |
Ratio |
|
TRE |
|
|
|
|
|
Diameter |
Spline |
|
|
Part No. |
|
LandCruiser J200 Series, |
Front |
2007 on |
All models |
34.8 (1.37") |
34 |
All |
|
NA6 |
|
Lexus LX570 |
Rear |
2007 on |
All models |
34.8 (1.37") |
32 |
All |
|
RD152 |
|
LandCruiser 71, 76, 78, |
Front |
1998 on |
8" dia. RG, IFS, 50mm bearing ID |
33 |
(1.31") |
30 |
All |
|
NA |
79, 100 & 105 Series, |
|
1998 on |
Live axle suspension |
33 |
(1.31") |
30 |
All |
|
RD132 |
Lexus LX470 |
Rear |
1998 on |
All models |
34.8 (1.37") |
32 |
All |
|
RD152 |
|
LandCruiser Prado, |
Front |
1996-03 |
7.5" dia. RG,10 bolt, IFS |
28 |
(1.1") |
27 |
All |
|
RD90 |
90, 120 and 150 Series, |
|
2003 on |
8" dia. RG, IFS clamshell, 53mm BRNG |
33 |
(1.31") |
30 |
3.91 & UP |
|
RD1113 |
Lexus GX |
|
|
|
|
|
|
3.73 & DN |
|
RD1213 |
|
Rear |
1996 on |
8" dia. RG, 10 bolt |
33 |
(1.31") |
30 |
All |
|
RD132 |
|
|
2009 on |
8.15" dia. RG, 12 bolt (shimmed) |
33 |
(1.31") |
30 |
All |
|
RD193 |
LandCruiser 40, 55, 60, |
Front |
To 1989 |
12 bolt, full floating |
33 |
(1.31") |
30 |
All |
|
RD1421 |
62, 70, 73, 74, 75 & |
|
1990-97 |
10 bolt, full floating |
33 |
(1.31") |
30 |
All |
|
RD132 |
80 Series,Lexus LX450 |
Rear |
1969-76 |
12 bolt, semi floating, 45mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD1531 |
|
|
1977-89 |
12 bolt, full floating, 45mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD1421 |
|
|
1990-97 |
12 bolt, full floating, 50mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD142 |
|
|
1977-92 |
12 bolt, semi floating, 50mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD153 |
FJ40s made in |
Rear |
|
Dana 60 |
33 |
(1.31") |
30 |
4.56 & UP |
RD162 |
|
South America |
|
|
|
|
|
|
4.10 & DN |
RD163 |
|
Bundera, LandCruiser II, |
Front |
All |
10 bolt |
33 |
(1.31") |
30 |
All |
|
RD1321 |
LJ70, RJ70 |
Rear |
To 1985 |
10 bolt, 45mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD1321 |
|
|
1986 on |
10 bolt, 50mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD132 |
HiLux, Pickup, Hiace, |
Front |
All |
10 bolt, live axle |
33 |
(1.31") |
30 |
All |
|
RD1321 |
Fortuner |
|
To 2005 |
7.5" dia. RG,10 bolt, IFS |
28 |
(1.1") |
27 |
All |
|
RD902 |
|
|
2005 on |
8" dia. RG, IFS clamshell, 53mm BRNG |
33 |
(1.31") |
30 |
3.91 & UP |
|
RD1113 |
|
|
|
|
|
|
|
3.73 & DN |
|
RD1213 |
|
Rear |
To 1988 |
4 cylinder, 45mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD1321 |
|
|
1988-05 |
All models, 50mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD132 |
|
|
2005-15 |
Adjuster nut models, 50 or 53mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD1324 |
|
|
|
Dana Spicer shim adjusted models. |
33 |
(1.31") |
30 |
All |
|
RD1335 |
|
|
2015 on |
8.9" dia. RG, 12 bolt (shimmed) |
34.8 (1.37") |
32 |
All |
|
NA |
|
4Runner, LN61, YN63 |
Front |
All |
10 bolt, live axle |
33 |
(1.31") |
30 |
All |
|
RD1321 |
|
|
To 2003 |
7.5" dia. RG,10 bolt, IFS |
28 |
(1.1") |
27 |
All |
|
RD902 |
|
|
2003 on |
8" dia. RG, IFS clamshell, 53mm BRNG |
33 |
(1.31") |
30 |
3.91 & UP |
|
RD1113 |
|
|
|
|
|
|
|
3.73 & DN |
|
RD1213 |
|
Rear |
1984-88 |
4 cylinder, 45mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD1321 |
|
|
1988-10 |
V6, 4WD, 50mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD132 |
|
|
1988-10 |
V6, 2WD, 45mm bearing ID |
33 |
(1.31") |
30 |
All |
|
RD1321 |
|
|
2010 on |
8.15" dia. RG, 12 bolt (shimmed) |
33 |
(1.31") |
30 |
All |
|
RD193 |
T100, Tacoma |
Front |
2005 on |
8" dia. RG, IFS clamshell, 53mm BRNG |
33 |
(1.31") |
30 |
3.91 & UP |
|
RD1113 |
|
|
|
|
33 |
(1.31") |
30 |
3.73 & DN |
|
RD1213 |
|
|
To 2004 |
7.5" dia. RG,10 bolt, IFS |
28 |
(1.1") |
27 |
All |
|
RD90 |
|
Rear |
To 2015 |
8.4" dia. RG, 12 bolt |
33 |
(1.31") |
30 |
All |
|
NA |
|
|
2016 on |
8.0" dia RG, all autos excl. OE Locker Equipped |
33 |
(1.31") |
30 |
All |
|
RD132 |
|
|
|
8.9" dia RG, all manuals & all OE Locker Equipped |
34.8 (1.37") |
32 |
All |
|
NA |
|
Tundra |
Front |
2007 on |
All models |
34.8 (1.37") |
34 |
All |
|
NA6 |
|
|
|
To 2006 |
7.5" dia. RG,10 bolt, IFS |
28 |
(1.1") |
27 |
All |
|
RD90 |
|
Rear |
To 2006 |
8.4" dia. RG, 12 bolt |
33 |
(1.31") |
30 |
All |
|
NA |
|
|
2007 on |
10.5" dia. RG |
36.8 (1.45") |
36 |
All |
|
NA |
|
Sequoia |
Front |
2007 on |
All models |
34.8 (1.37") |
34 |
All |
|
NA6 |
|
|
|
To 2008 |
7.5" dia. RG,10 bolt, IFS |
28 |
(1.1") |
27 |
All |
|
RD90 |
|
Rear |
To 2007 |
8.4" dia. RG, 12 bolt, live axle |
33 |
(1.31") |
30 |
All |
|
NA |
|
|
2008 on |
10" dia. RG, IRS |
|
|
|
All |
|
TBD |
FJ Cruiser |
Front |
2005 on |
8" dia. RG, IFS clamshell, 53mm BRNG |
33 |
(1.31") |
30 |
3.91 & UP |
|
RD1113 |
|
|
|
|
|
|
|
3.73 & DN |
|
RD1213 |
|
Rear |
2006-09 |
8" non-factory locker model |
33 |
(1.31") |
30 |
All |
|
RD132 |
|
|
2010 on |
8.15" dia. RG, non-factory locker model |
33 |
(1.31") |
30 |
All |
|
RD193 |
Dyna 150 |
Rear |
TBD |
10.5",34 SPL |
34.8 (1.37") |
34 |
All |
|
NA |
