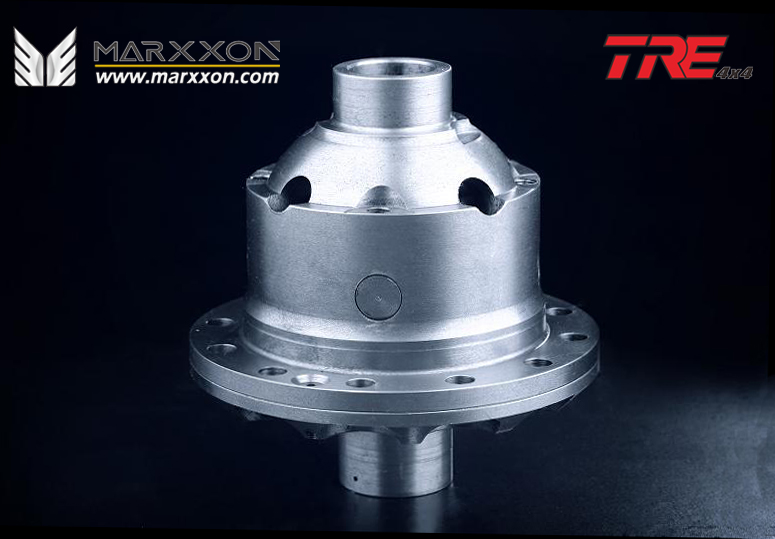

PRODUCT : Air Locker- Air Operated Locking Differential for Chrysler Jeep
DETAILS :
TRE air locker differential developed by MARXXON mainly for hard off road driving condition, for off road competition. The TRE Air Locker System is a pneumatic locking differential that uses a dash mounted electric switch to activate a vacuum diaphragm which engages the locker. The TRE Air Locker uses a small charge of air from an on board air compressor that in turn activates the locker. When activated, both axle shafts are locked together into the equivalent of a spool providing 100% equal traction to both wheels of that axle with no differential of speed between the wheels of that axle.
Welcome Distributor and Dealer contact us for details.
MARXXON-TRE Air Locker Features
Provides 100% traction on demand without affecting on road drivability or driveline wear
Vastly improved traction means less reliance on momentum, which reduces vehicle likelihood damage & environmental impact
Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort & safety of the driver’s seat
Ultra durable and extremely strong - only the highest quality materials used in construction
Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability
Thoroughly tested and proven design – trusted and used in over 80 countries around the world
Front and rear Air Lockers available for most makes and models 4WD & 2WD applications
Easy installation and maintenance – no special tools, skills or additives required
Vehicle/Model |
Axle Loc'n |
Year |
Description |
Shaft |
Shaft |
Ratio |
TRE |
|
|
|
|
Diameter |
Spline |
|
Part No. |
Maverick |
Front |
All |
H233B |
32.0 (1.26") |
31 |
All |
RD136 |
(Nissan Patrol GQ) |
Rear |
All |
H233B |
|
33 |
All |
RD135 |
F100/150 Pickup, |
Front3 |
1997 on |
Ford 8.8" dia. RG, IFS |
30.5 (1.20") |
28 |
All |
NA |
E100/150 Van (2WD), |
|
2010 on |
Ford 8.8" dia. RG, IFS (incl. Raptor) |
33.5 (1.32") |
31 |
All |
NA |
Bronco |
|
1983-96 |
Dana 44, C-clip |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
To 1982 |
Dana 44 |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
Rear |
1976-86 |
Ford 9" dia. RG |
33.5 (1.32") |
31 |
All |
RD119 |
|
|
1977-79 |
Dana 44 |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
To 1979 |
Ford 9" dia. RG, 28 spline |
30.5 (1.20") |
28 |
All |
NA |
|
|
1997 on |
Ford 9.75" dia. RG, C-clip |
34.8 (1.37") |
34 |
All |
NA |
|
|
1983 on |
Ford 8.8" dia. RG |
33.5 (1.32") |
31 |
All |
NA |
F250 Pickup, |
Front3 |
1997-98 |
Ford 8.8" dia. RG, 3750lb |
33.5 (1.32") |
31 |
All |
NA |
E250 Van (2WD) |
|
|
|
30.5 (1.20") |
28 |
All |
NA |
|
|
1983-96 |
Dana 44, C-clip |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
To 1983 |
Dana 44 |
33.3 (1.31") |
30 |
3.92 & UP |
RD116 |
|
|
|
|
|
|
3.73 & DN |
RD117 |
|
|
1980-06 |
Dana 50,IFS w/ HD suspension option |
33.3 (1.31") |
30 |
All |
NA |
|
|
1999-02 |
Dana 50,live axle |
33.3 (1.31") |
30 |
All |
NA |
|
|
2000-05 |
Dana 50,live axle |
33.3 (1.31") |
30 |
All |
NA |
|
|
2000 on |
Dana 60, full floating |
38.1 (1.50") |
35 |
4.56 & UP |
RD166 |
|
|
|
|
|
|
4.10 & DN |
RD167 |
|
Rear |
1985 on |
Ford 10.25"/10.5" dia. RG,6250lb,full floating |
38.1 (1.50") |
35 |
All |
NA |
|
|
1975-84 |
Dana 60, full floating |
33.3 (1.31") |
30 |
4.56 & UP |
RD162 |
|
|
|
|
|
|
4.10 & DN |
RD163 |
|
|
1995-96 |
Dana 60, full floating |
38.1 (1.50") |
35 |
4.56 & UP |
RD166 |
|
|
|
|
|
|
4.10 & DN |
RD167 |
|
|
2002 on |
Dana 70, full floating |
35.8 (1.41") |
32 |
4.56 & UP |
NA |
|
|
|
|
|
|
4.10 & DN |
NA |
|
|
1981 on |
Dana 60, semi floating (C-clip) |
38.1 (1.50") |
35 |
4.56 & UP |
RD168 |
|
|
|
|
|
|
4.10 & DN |
RD169 |
F350 Pickup, |
Front |
1980-04 |
Dana 50 |
33.3 (1.31") |
30 |
All |
NA |
E350 Van (2WD) |
|
1997-00 |
Non-HD option |
33.3 (1.31") |
30 |
All |
NA |
|
|
1986 on |
Dana 60 |
38.1 (1.50") |
35 |
All |
RD167 |
|
|
|
|
38.1 (1.50") |
35 |
4.56 & UP |
RD166 |
|
Rear |
1985 on |
Ford 10.25" dia. RG, 6250lb, full floating |
38.1 (1.50") |
35 |
All |
NA |
|
|
2000-01 |
Dana 60 (dual rear wheel axle models) |
38.1 (1.50") |
35 |
4.56 & UP |
RD166 |
|
|
|
|
|
|
4.10 & DN |
RD167 |
|
|
1988 on |
Dana 60, full floating |
38.1 (1.50") |
35 |
4.56 & UP |
RD166 |
|
|
|
|
|
|
4.10 & DN |
RD167 |
|
|
1975-85 |
Dana 70HD,10.5" dia. RG |
38.1 (1.50") |
35 |
4.56 & UP |
NA |
|
|
|
|
|
|
4.10 & DN |
NA |
|
|
1975-85 |
Dana 70U |
38.1 (1.50") |
35 |
4.57 & UP |
NA |
|
|
|
|
|
|
4.10 & DN |
NA |
|
|
1973-79 |
Dana 60, full floating |
33.3 (1.31") |
30 |
4.56 & UP |
RD162 |
|
|
|
|
|
|
4.10 & DN |
RD163 |
Explorer, Ranger (US), |
Front |
1990-97 |
Dana 35 (V6 only) |
29.5 (1.16") |
27 |
2.73-3.31 |
RD103 |
Aerostar (2WD) |
|
|
|
|
|
3.54 & UP |
RD102 |
|
|
1998 on |
Dana 35 (non-standard) |
|
|
|
NA |
|
Rear |
1990 on |
Ford 8.8" dia. RG, C-clip |
30.5 (1.20") |
28 |
All |
NA |
|
|
|
|
33.5 (1.32") |
31 |
All |
NA |
Courier, Ranger (Thai) |
Front |
To 2006 |
All |
|
|
All |
NA |
|
|
2006-12 |
IFS, 30 spline |
30.8 (1.21") |
30 |
All |
NA |
|
|
2012 on |
IFS, 29 spline, clamshell type |
31.5 (1.24") |
29 |
All |
NA |
|
Rear |
To 2006 |
4 cylinder, Dana banjo type |
30.8 (1.21") |
30 |
All |
RD123 |
|
|
|
6 cylinder, salisbury type |
32.8 (1.29") |
30 |
All |
NA |
|
|
2006-11 |
Dana 44,32 spline |
35.8 (1.41") |
32 |
All |
NA |
|
|
2012 on |
All models (incl. OE locker equipped)9 |
34.6 (1.36") |
32 |
All |
NA |
Expedition |
Front |
1997 on |
Ford 8.8" dia. RG, C-clip |
30.5 (1.20") |
28 |
All |
NA |
|
Rear |
1997 on |
Ford 9.75" dia. RG |
34.8 (1.37") |
34 |
All |
NA |
F450/550 Pickup, |
Front |
1997 on |
Dana 60 |
38.1 (1.50") |
35 |
4.56 & UP |
RD166 |
Super Duty Van (2WD), |
|
|
|
|
|
4.10 & DN |
RD167 |
E/F350 Dually |
Rear |
1996 on |
Dana 80 |
40.6 (1.60") |
37 |
All |
NA |
|
|
1988 on |
Dana 80 |
38.1 (1.50") |
35 |
All |
NA |
