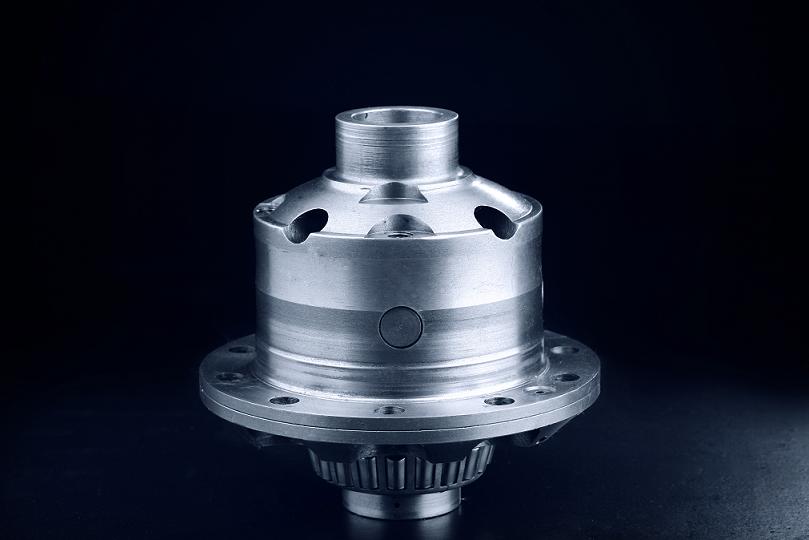

PRODUCT : Air Locker- Air Operated Locking Differential for MITSUBISHI
DETAILS :
TRE air locker differential developed by MARXXON mainly for hard off road driving condition, for off road competition. The TRE Air Locker System is a pneumatic locking differential that uses a dash mounted electric switch to activate a vacuum diaphragm which engages the locker. The TRE Air Locker uses a small charge of air from an on board air compressor that in turn activates the locker. When activated, both axle shafts are locked together into the equivalent of a spool providing 100% equal traction to both wheels of that axle with no differential of speed between the wheels of that axle.
Welcome Distributor and Dealer contact us for details.
MARXXON-TRE Air Locker Features
Provides 100% traction on demand without affecting on road drivability or driveline wear
Vastly improved traction means less reliance on momentum, which reduces vehicle likelihood damage & environmental impact
Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort & safety of the driver’s seat
Ultra durable and extremely strong - only the highest quality materials used in construction
Incredibly simple yet effective design that employs minimal moving parts, thereby ensuring maximum reliability
Thoroughly tested and proven design – trusted and used in over 80 countries around the world
Front and rear Air Lockers available for most makes and models 4WD & 2WD applications
Easy installation and maintenance – no special tools, skills or additives required
MITSUBISHI |
|
|
|
|
|
|
|
Vehicle/Model |
Axle Loc'n |
Year |
Description |
Shaft |
Shaft |
Ratio |
TRE |
|
|
|
|
Diameter |
Spline |
|
Part No. |
Montero, Raider, |
Front |
1989 on |
IFS, 28 spline, 8.00" RG |
28.8 (1.13") |
28 |
All |
RD1104 |
Pajero, Delica (van), |
|
1984-97 |
IFS, 25 spline, 7.25" RG |
|
25 |
All |
NA |
Shogun |
Rear |
1983-86 |
8.00" 10 bolt RG1 |
30.5 (1.20") |
28 |
All |
RD210 |
|
|
1987-95 |
9.00" 12 bolt RG2 |
30.5 (1.20") |
28 |
All |
RD2123 |
|
|
1993-00 |
3.5L & 2.8TDI, NJ,NK,NL, 9.5" RG, live axle |
33.6 (1.32") |
31 |
All |
RD154 |
|
|
2000 on |
NM,NP,NS,NT 9.5" RG, IRS |
|
33 |
All |
RD155 |
Pajero/Montero iO, |
Front |
TBD |
TBD |
TBD |
TBD |
TBD |
NA |
Pinin, Shogun |
Rear |
All |
8.00" 10 bolt RG1 |
30.5 (1.20") |
28 |
All |
RD210 |
Challenger |
Front |
All |
IFS, 28 spline |
28.8 (1.13") |
28 |
All |
RD110 |
Montero Sport |
Rear |
To 2008 |
3.0L petrol, 2.5L diesel, 9.00" RG |
30.5 (1.20") |
28 |
All |
RD212 |
Pajero Sport |
|
All |
3.5L, 9.50" RG |
33.6 (1.32") |
31 |
All |
RD154 |
|
|
2008 on |
2.5L, 9.50" RG |
33.6 (1.32") |
31 |
All |
RD154 |
|
|
2016 on |
2.4L, 9.50" RG |
33.6 (1.32") |
31 |
All |
RD154 |
Triton, L200, Pickup |
Front |
All |
IFS, 28 spline, 8.00" RG |
28.8 (1.13") |
28 |
All |
RD1104 |
|
|
All |
IFS, 25 spline, 7.25" RG |
|
25 |
All |
NA |
|
Rear |
All |
9.00" RG |
30.5 (1.20") |
28 |
All |
RD212 |
|
|||||||
|
|
2002 on |
9.50" RG |
33.6 (1.32") |
31 |
All |
RD154 |
